Shure QLXD124/85 Digital Wireless Combo Microphone System (G50: 470 to 534 MHz)

From: $45.00

For Presenters and Performers
WL185 Cardioid Lavalier Mic
Rugged Bodypack Transmitter
SM58 Dynamic Cardioid Mic/Transmitter

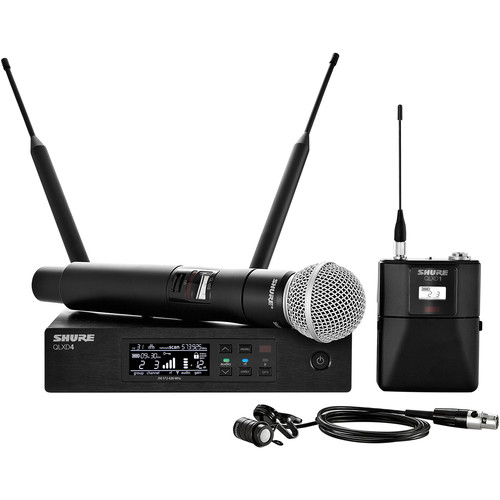

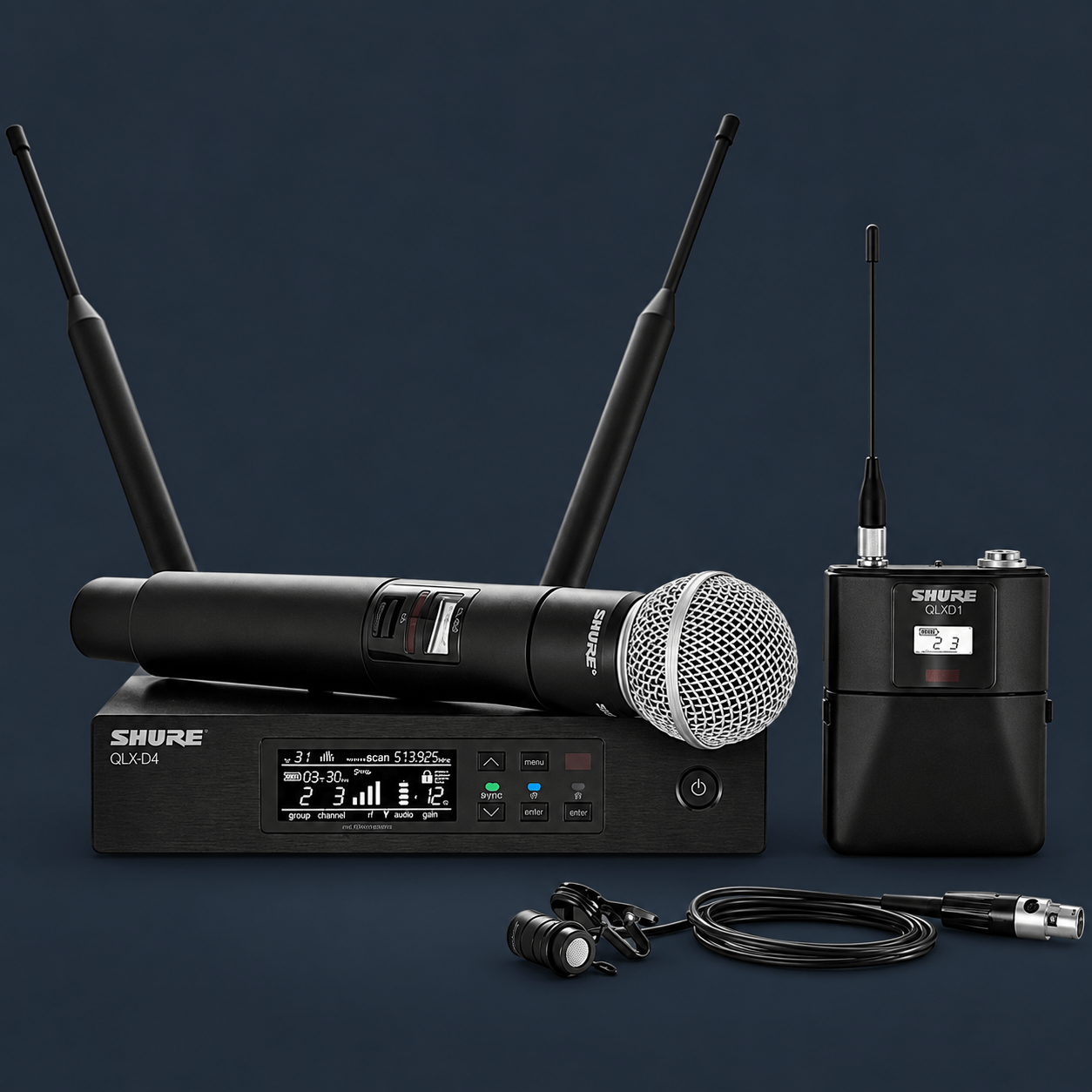

The Shure QLXD124/85 rackmount digital wireless combo microphone system provides instructors, clergy, presenters, and performers with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for use in sound-reinforcement applications in medium-sized venues and houses of worship, as well as A/V installations in conference, educational, and corporate facilities.

Description

The Shure QLXD124/85 rackmount digital wireless combo microphone system provides instructors, clergy, presenters, and performers with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for use in sound-reinforcement applications in medium-sized venues and houses of worship, as well as A/V installations in conference, educational, and corporate facilities.

The QLXD124/85 operates in the UHF band to transmit pristine 24-bit/48 kHz digital audio with clarity, accurate low end, and crisp transient response. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver solid RF signal stability without audio artifacts. You can run up to 60 mic channels at the same location.

The system comes with a QLXD1 bodypack transmitter and a WL185 cardioid lavalier microphone optimized for speech intelligibility. It also includes the QLXD2 handheld transmitter featuring an interchangeable capsule design and equipped with the legendary SM58 cardioid dynamic capsule, an industry standard for vocalists and presenters. Both transmitters provide up to 9 hours of operation on two AA batteries, with selectable 1/10mW RF power and a transmission range up to 330′.

The receiver features audio and RF meters, 60 dB of gain control, and both mic/line XLR and 1/4″ instrument outputs. A large LCD screen and intuitive controls let you quickly make adjustments, even in low-light situations. Additional features include automatic frequency scanning, IR sync, and internal limiting to prevent clipping.

The Ethernet port allows multiple receivers to be easily networked together for simplified frequency coordination and deployment via Shure’s Wireless Workbench (WWB) software.

Note: While this system includes two transmitters, only one can be used at a time.
Rugged Bodypack Transmitter with Lav Mic for Hands-Free Presentations

The WL185 condenser lavalier mic features a cardioid polar pattern that helps to reject unwanted noise.

The lavalier mic plugs into the locking TA4M connector on the compact QLXD1 bodypack transmitter. The adjustable input sensitivity on the transmitter accommodates a wide variety of speaking styles and mic levels, and even instrument-level audio.

The rugged, all-metal transmitter features a backlit LCD that displays essential information and provides fast menu access. It can be locked out to prevent accidental changes during a performance. The transmitter syncs to the receiver via infrared with a quick press on the Sync button.
Lightweight Handheld Transmitter with Classic SM58 Capsule

The durable QLXD2 handheld transmitter offers a lightweight, ergonomic design and is comfortable to hold.

The transmitter features a backlit LCD that displays essential information and provides fast menu access. It can be locked out to prevent accidental changes during a performance. The adjustable input sensitivity on the transmitter accommodates a wide variety of speaking styles. The transmitter syncs to the receiver via infrared with a quick press on the Sync button.

The SM58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback, while its brightened midrange and bass roll-off deliver that sought-after warm and clear vocal reproduction.

The transmitter’s interchangeable capsule design allows you to choose the ideal capsule for your application. Shure offers a variety of optional dynamic and condenser mic capsules with varying pickup patterns—capsules include the Beta 58A, Beta 87A, SM86, SM87A, KSM8, and KSM9.
Robust Performance with Digital Switching Diversity Reception

The system operates in the G50: 470 to 534 MHz UHF band with a 64 MHz tuning range and 2560 selectable frequencies.

Digital Predictive Switching Diversity uses a microprocessor to switch antennas before dropouts occur.

Two detachable 1/2 wave dipole antennas are included.

256-bit AES encryption offers unbreachable privacy by using a unique, randomized encryption key generated every time encryption is enabled.

Low latency makes the system ideal for meetings that require live sound reinforcement.
Intelligent Hardware Simplifies Setup, Monitoring, and Control

The receiver’s scanning function automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters via IR sync.

The receiver offers up to 60 dB of adjustable gain with an internal limiter that automatically engages to prevent digital clipping of your audio.

Intuitive front-panel controls with audio and RF LED meters as well as a peak indicator allow for quick visual checks.

Ethernet networking enables real-time, precision monitoring and control of your system as well as automatic frequency coordination across multiple receivers, using Wireless Workbench software (WWB) for Mac/Windows.

The system is compatible with external controllers such as AMX and Creston.

Remote Control: Make adjustments from anywhere in the venue from your iPad/iPhone via the ShurePlus Channels Mobile App for iOS devices.
Smart Power Management Options

Smart Power Management on Transmitters: The SB900A lithium-ion intelligent rechargeable battery with SBC charger (both available separately) provide extended transmitter battery life over alkaline batteries.

The SB900A’s remaining battery life can be metered in hours and minutes from the receiver’s front panel.
Enhance the Reliability of Your System

Adding UA874 active antennas or PA805 passive antennas increases the range of your system and offers increased protection against interference.

The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.
A Variety of Options to Meet Your Needs

Shure offers numerous lavalier, headset, and handheld microphone options to adapt your QLX-D system as your needs evolve.

The WL183 omnidirectional lavalier mic offers consistent pickup even when the talent turns away from the mic.

The WL184 supercardioid lavalier mic offers narrower, feedback-resistant pickup patterns for louder events.

The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.

The SM35 is a comfortable, durable headset microphone for active performance.
