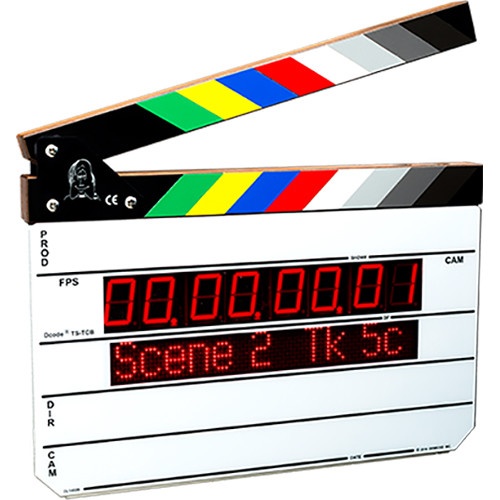

Timecode Systems Denecke Intelligent Clapper Slate with Integrated Wireless Technology

Manual: https://www.xsiterentals.com/PDF/Manuals/Denecke-TS-TCB.pdf Production Slate with dual screen digital readout. Control from your ios device. Includes case and 1 fresh set of procell batteries. – Please Note: Cameras and audio need to be slated every time the batteries are removed from any device. Timecode Sync cables included: 5 pin Lemo to 5 pin lemo 5 pin lemo to BNC 5 Pin Lemo to 1/4″ You will need a special cable which we don’t provide if you have something other than this. Please test your connections prior to your production. Size 280mm x 35mm x 210mm Weight 990g BLINK Communication between units over BLINK RF BLINK Hub Monitor & control from the BLINK Hub app BLINK Hub Wireless connection to BLINK Hub External Power LEMO5 (pin 4 + 6/14V DC, pin 1 GND) Internal Power 6 x ‘AA’ batteries slate Mirroring Update metadata from BLINK Hub app Walnut clap Frame-accurate clap times RF sync range approximately 200m Display Ultra-bright LED FPS 23.976, 24, 25, 29.97, 30, 29.97DF, 30DF Frequency 865.050MHz to 923.200MHz
